DC Charging

1 or 2 Connector

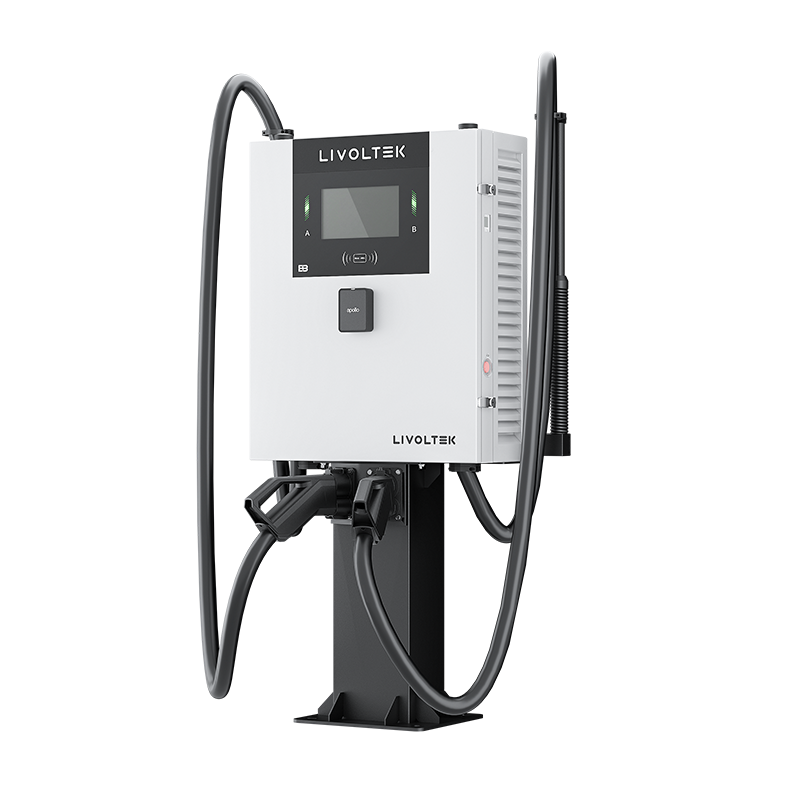

MotionCompact DC Wallbox EV Charger

MC 15/20/30/40/60

LIVOLTEK Motion Compact Series DC Wallbox (MC series) is easy to install with a compact design, provides a larger and more constant charging current than AC wallbox. More universal, more efficient, adding to client’s loyalty with EV charging for your business.

Datasheet Installation Guide

Product Highlights

Compact DC wallbox design, easy to install, less space requirement

Pedestal & wall mounted selestable Charging cable management system selectable

Connect any backend based on OCPP 1.6J

POS terminal selectable

1 2 3 4 5

MotionCompact DC Wallbox

MC15

Model	MC15
Charging Mode	Mode4 EV C
Rate Output Power	15kW
Max Output Current	50A
Number of Outputs	1 connector
Connector Type	CCS2

MC20

Model	MC20
Charging Mode	Mode4 EV C
Rate Output Power	20kW
Max Output Current	65A
Number of Outputs	1 connector
Connector Type	CCS2

MC30

Model	MC30
Charging Mode	Mode4 EV C
Rate Output Power	30kW
Max Output Current	100A
Number of Outputs	1 connector
Connector Type	CCS2

MC40

Model	MC40
Charging Mode	Mode4 EV C
Rate Output Power	40kW
Max Output Current	150A
Number of Outputs	1 or 2 connector
Connector Type	CCS2/CCS2 + CCS2/CCS2 + CCS1

MC60

Model	MC60
Charging Mode	Mode4 EV C
Rate Output Power	60kW
Max Output Current	150A or 200A customized
Number of Outputs	1 or 2 connector
Connector Type	CCS2/CCS2 + CCS2/CCS2 + CCS1
