MF DC Charging Station

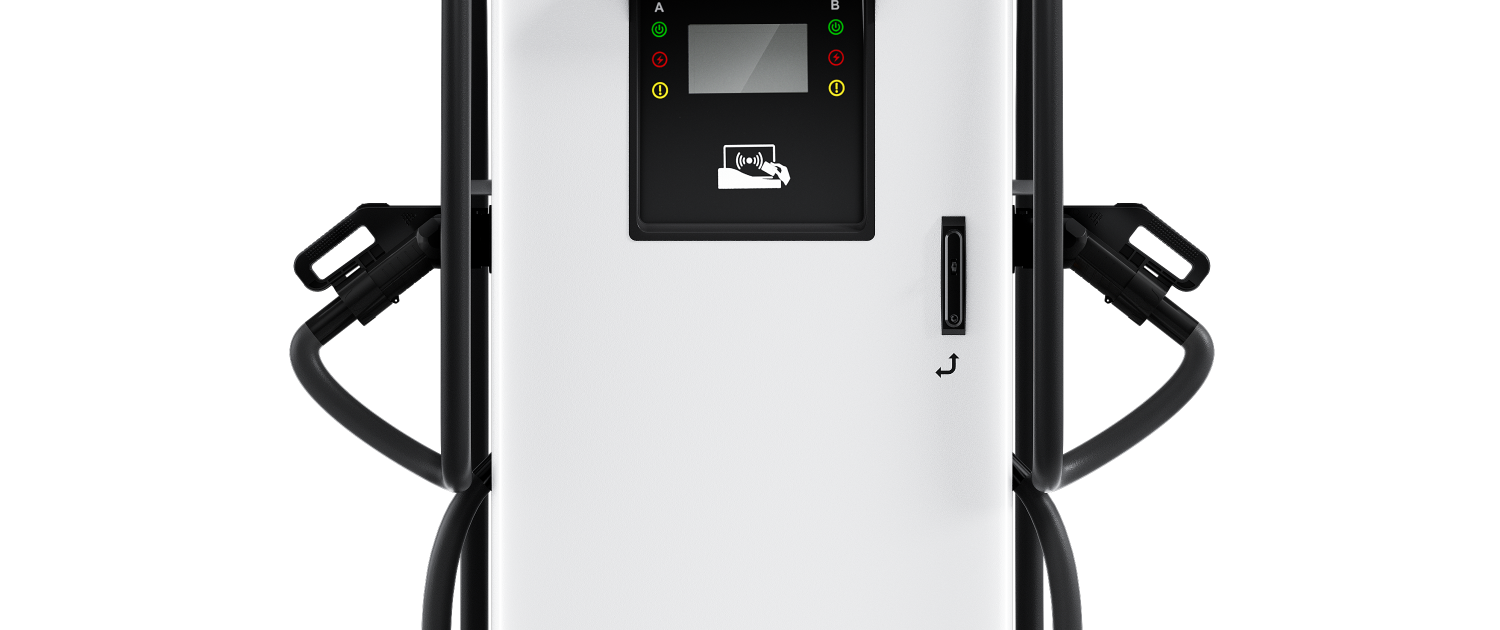

MotionFast DC Charging Station

60kW/120kW + 22kW AC Optional

MF stand-alone DC charging station, maximum 120kW DC output for quick and flexible charging.
LIVOLTEK stand-alone fast charging station integrated with two DC output and one optional AC output, can be flexible configure with CCS, CHAdeMO, GB/T plugs and AC connectors. It has intelligent cable management system for effortless pick-up. It complies with all IEC standards for off-board electric vehicle charging systems, including IEC 61851-21-2 EMC requirement and IEC 61851-24 digital communication control.

Datasheet User Manual Installation Guide Certificate

Standard Two DC Output

Two DC Output with Optional AC Output

DC Output with Retractable Cable System

Future-proof design via open standards, OCPP 1.6J support remote update to OCPP2.0.1 protocol

Multi User Authorization with RFID, APP, customized NFC payment

CE, UKCA and RoHS certification, suitable for all European countries need

Load management & real-time demand response ready with Livoltek EV Charging Control Hub

Multi Outlet Compliance with CCS2, CHAdeMO, Type2 socket & connector

Integrated retractable cable management system

Interaction via 10‘‘color touch display

MID Compliance Meter

Installation

1 2 3 4 5

Smart Solar EV Charger MF 60kW

Model	MF 60
Rated Power	60kW
Rated Input Voltage	400Vac±10%
AC Input Max. Current.	116A, 148A with optional AC
External Communication	RS485 / RS232 / CAN
IP Degree	IP54 \| IK10

Smart Solar EV Charger MF 120kW

Model	MF 120
Rated Power	120kW
Rated Input Voltage	400Vac±10%
AC Input Max. Current.	232 A, 264A with optional AC
External Communication	RS485 / RS232 / CAN
IP Degree	IP54 \| IK10
