Smart Meter For Single Phase Solutions

New Energy Meter Single Phase Two-wire(1P2W)

LHE12D

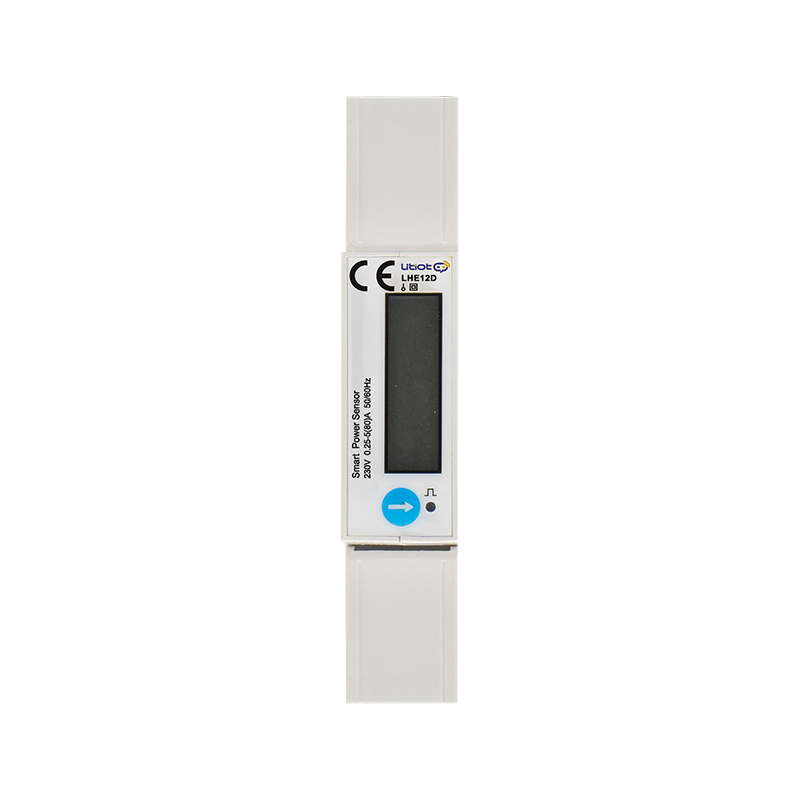

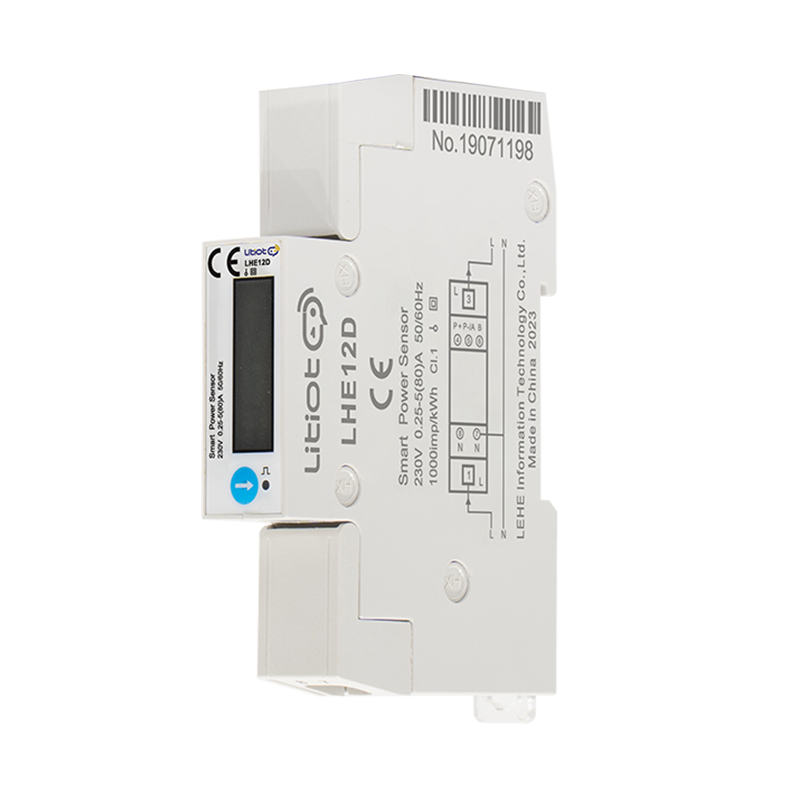

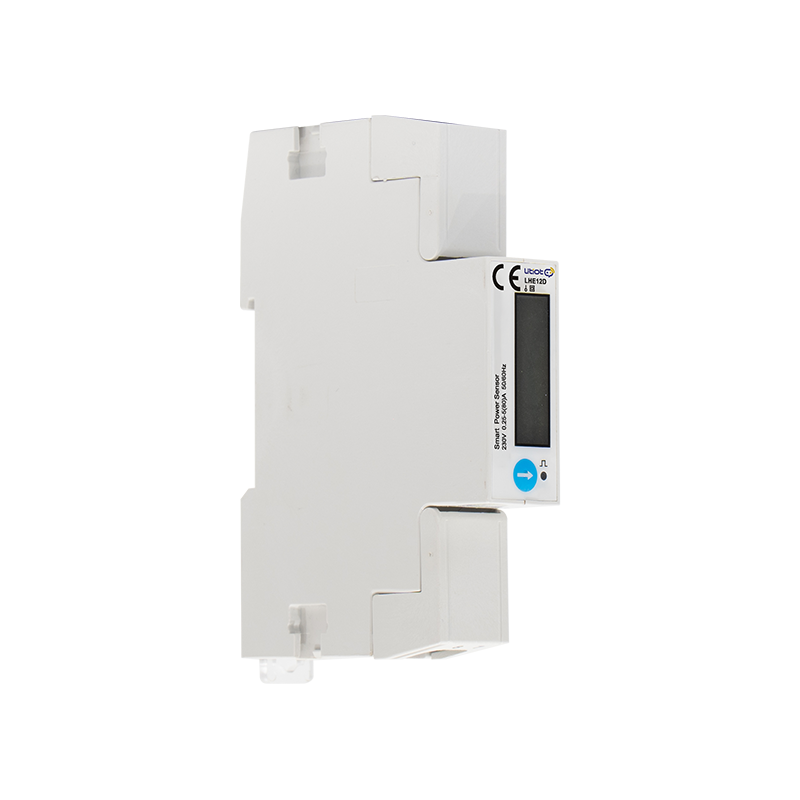

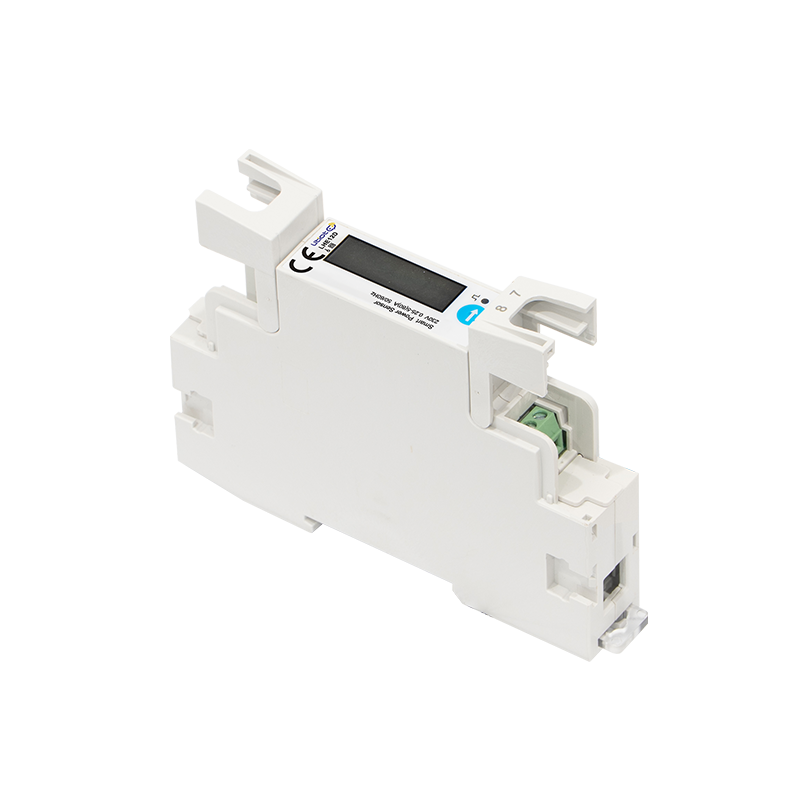

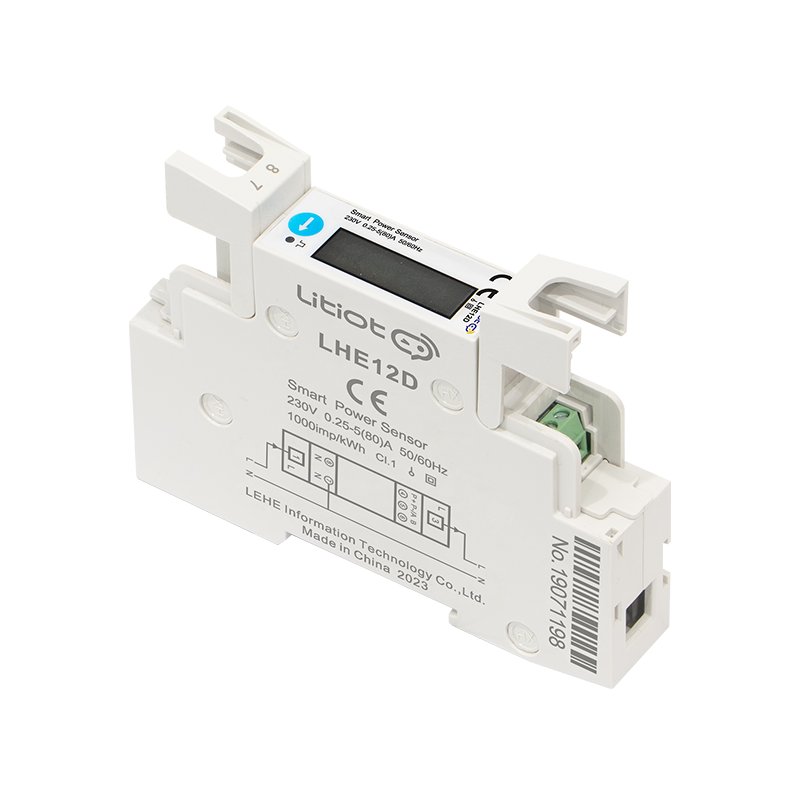

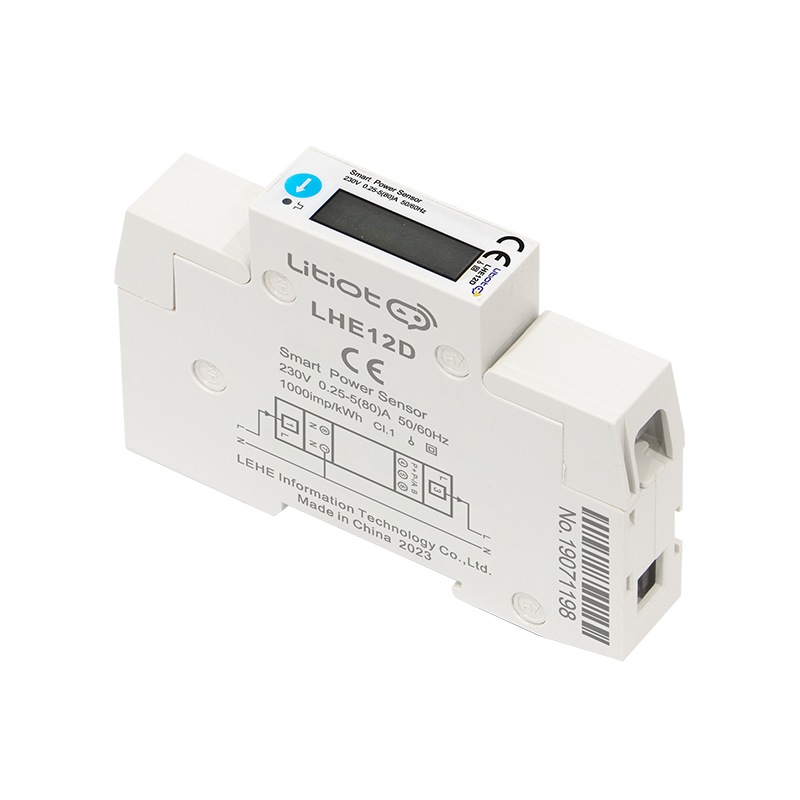

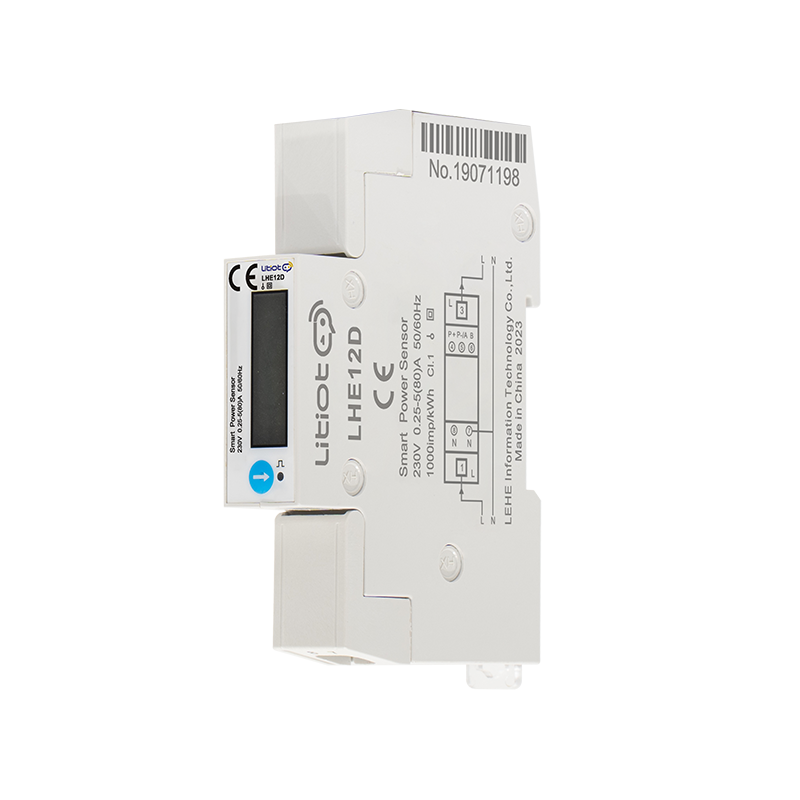

LHE12D is a single-phase multi-function direct-connect rail-mounted meter.
LHE12D is intended to measure grid parameters, e.g., active energy, reactive energy, voltage, current, power, power factor and frequency. The RS485 interface provides power monitoring data for inverters and other devices to realize fast response control. Standard DIN rail installation, with a small size, easy to install.
Widely used in distributed photovoltaic, energy storage power stations and other new energy fields for powering data monitoring.

Datasheet

Product Highlights

Safe Operation

RS485 is physically isolated from the high voltage terminals

Fast Instantaneous Refresh

Support voltage, current, active power, reactive power, power factor and other instantaneous responses of 100ms

Communication Function

Supports RS485 communication port, supporting up to 38400 baud rate

Module Expansion Interface

Support external communication module, can be used to expand Bluetooth, WiFi and other wireless communication modules, wireless communication with inverter equipment

Main Functionalities

Measurement

Total import & export energy kWh
Total import & export energy kvarh (optional)

Instantaneous Values

Voltage
Current
Frequency
Power factor
Power (active and reactive)

Interface

1 RS485 port, protocol: Modbus-RTU
Wireless module expansion interface (optional)

LCD

Backlight (optional)

1 2 3 4 5 6

LHE12D

Model	LHE12D
Connection	Single-phase two-wire(1P2W)
Voltage	Nominal voltage: 220V/230V/240V Operating voltage range: 70%Un～130%Un
Current	5 (80) A
Frequency	50Hz/60Hz
Dimension (HxWxD)	100mmx18mmx69mm
Certification	CE, MID, RoHS
