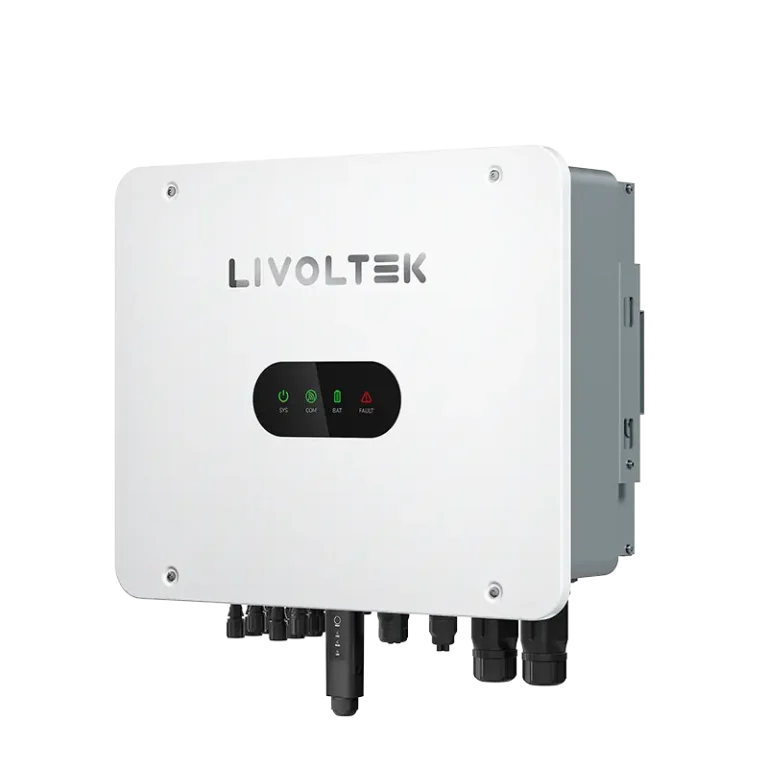

Hybrid Inverter

THREE-PHASE: HP3-14.9K/15K/20K/25K/29.9K/30K T2

As the core of the energy storage solution, LIVOLTEK three-phase hybrid inverter offers flexible and socialable solutions for both residential and commercial applications. With the ability of scalable battery storage, the high-voltage inverter facilitates powerful energy backup and also presents high self-consumption with optimized built-in EMS to reduce energy costs.

High Performance

-200% DC input oversizing
-200% overload for backup loads
-Seamless switch for backup mode

Flexible Application

-Supports parallel function
-100% unbalanced output
-Compatible with generation

Smart Management

-Peak shaving mode
-Support half-wave loads
-Remote control and upgrade

Safe and Reliable

-AC & DC SPD type II
-AFCI function optional
-Touch-free, one-click communication

Play

HYBRID INVERTER

Three Phase: HP3-14.9KT2


Max. PV Input Power	30000 Wp
Max. PV Input Voltage	1000 V
MPPT Voltage Range	150V – 950V
No. of MPPTs/Strings per MPPT	3/(2+2+1)
Max. PV Current	32A/32A/16A
Max. AC Input Power	40000 Wp
Max. AC Input Current	58.0 A
Max. AC Current	22.6 A
Nominal EPS Power	14900 Wp
Max. Efficiency	98.20%
Dimension (WHD)	595485235 mm

HYBRID INVERTER

Three Phase: HP3-15KT2


Max. PV Input Power	30000 Wp
Max. PV Input Voltage	1000 V
MPPT Voltage Range	150V – 950V
No. of MPPTs/Strings per MPPT	3/(2+2+1)
Max. PV Current	32A/32A/16A
Max. AC Input Power	40000 Wp
Max. AC Input Current	58.0 A
Max. AC Current	22.8 A
Nominal EPS Power	15000 Wp
Max. Efficiency	98.20%
Dimension (WHD)	595485235 mm

HYBRID INVERTER

Three Phase: HP3-20KT2


Max. PV Input Power	40000 Wp
Max. PV Input Voltage	1000 V
MPPT Voltage Range	150V – 950V
No. of MPPTs/Strings per MPPT	3/(2+2+1)
Max. PV Current	32A/32A/16A
Max. AC Input Power	40000 Wp
Max. AC Input Current	58.0 A
Max. AC Current	30.4 A
Nominal EPS Power	20000 Wp
Max. Efficiency	98.20%
Dimension (WHD)	595485235 mm

HYBRID INVERTER

Three Phase: HP3-25KT2


Max. PV Input Power	50000 Wp
Max. PV Input Voltage	1000 V
MPPT Voltage Range	150V – 950V
No. of MPPTs/Strings per MPPT	3/(2+2+2)
Max. PV Current	32A/32A/16A
Max. AC Input Power	40000 Wp
Max. AC Input Current	58.0 A
Max. AC Current	37.9 A
Nominal EPS Power	25000 Wp
Max. Efficiency	98.40%
Dimension (WHD)	595485235 mm

HYBRID INVERTER

Three Phase: HP3-29.9KT2


Max. PV Input Power	60000 Wp
Max. PV Input Voltage	1000 V
MPPT Voltage Range	150V – 950V
No. of MPPTs/Strings per MPPT	3/(2+2+2)
Max. PV Current	32A/32A/32A
Max. AC Input Power	40000 Wp
Max. AC Input Current	58.0 A
Max. AC Current	45.3 A
Nominal EPS Power	29900 Wp
Max. Efficiency	98.40%
Dimension (WHD)	595485235 mm

HYBRID INVERTER

Three Phase: HP3-30KT2


Max. PV Input Power	60000 Wp
Max. PV Input Voltage	1000 V
MPPT Voltage Range	150V – 950V
No. of MPPTs/Strings per MPPT	3/(2+2+2)
Max. PV Current	32A/32A/32A
Max. AC Input Power	40000 Wp
Max. AC Input Current	58.0 A
Max. AC Current	45.5 A
Nominal EPS Power	30000 Wp
Max. Efficiency	98.40%
Dimension (WHD)	595485235 mm
