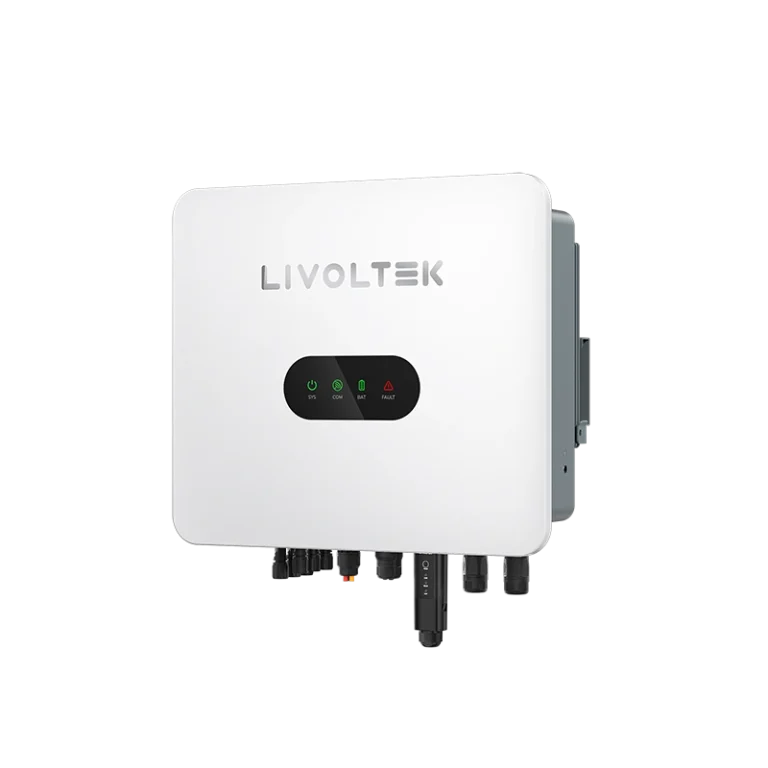

Hybrid Inverter
THREE-PHASE: HP3-5K/6K/8K/10K/12K D2, HP3-15K/20K/25K/30K T2
HP3-5K/6K/8K/10K/12K/15K L2
HP3-15K/20K/25K/30K/36K M2
HP3-5K/6K/8K/10K/12K/15K L2
HP3-15K/20K/25K/30K/36K M2
As the core of the energy storage solution, LIVOLTEK three-phase hybrid inverter offers flexible and scalable solutions for both residential and commercial applications. With the ability of scalable battery storage, the high-voltage inverter facilitates powerful energy backup and also presents high self-consumption with optimized built-in EMS to reduce energy cost.
High Performance
● 200% DC input oversizing
● 200% overload for backup loads
● Seamless switch for backup mode
Flexible Application
● Supports parallel function
● 100% unbalanced output
● Compatible with generator
Smart Management
● Peak shaving mode
● Support half-wave loads
● Remote control and upgrade
Safe and Reliable
● AC & DC SPD type II
● AFCI function optional
● Touch-free, one-click communication
HYBRID INVERTER
HP3-5K D2
|
Max. PV Input Power |
10000Wp |
|
MPPT Voltage Range |
150-950V |
|
Max.PV Current |
16A/16A |
|
Nominal AC Power |
5000W |
|
Nominal AC Voltage |
3W + N + PE, 380V, 400V, 415V |
|
Max.AC Current |
7.6A |
|
Nominal EPS Power |
5000W |
|
Max. Efficiency |
97.90% |
|
Battery Type |
Lithium |
|
Dimension (W*H*D) |
540*470*210mm
|
|
Weight |
26kg |
HYBRID INVERTER
HP3-6K D2
|
Max. PV Input Power |
12000Wp |
|
MPPT Voltage Range |
150-950V |
|
Max.PV Current |
16A/16A |
|
Nominal AC Power |
6000W |
|
Nominal AC Voltage |
3W + N + PE, 380V, 400V, 415V |
|
Max.AC Current |
9.1A |
|
Nominal EPS Power |
6000W |
|
Max. Efficiency |
97.90% |
|
Battery Type |
Lithium |
|
Dimension (W*H*D) |
540*470*210mm |
|
Weight |
26kg |
HYBRID INVERTER
HP3-8K D2
|
Max. PV Input Power |
16000Wp |
|
MPPT Voltage Range |
150-950V |
|
Max.PV Current |
16A/16A |
|
Nominal AC Power |
8000W |
|
Nominal AC Voltage |
3W + N + PE, 380V, 400V, 415V |
|
Max.AC Current |
12.1A |
|
Nominal EPS Power |
8000W |
|
Max. Efficiency |
98.00% |
|
Battery Type |
Lithium |
|
Dimension (W*H*D) |
540*470*210mm |
|
Weight |
26kg |
HYBRID INVERTER
HP3-10K D2
|
Max. PV Input Power |
20000Wp |
|
MPPT Voltage Range |
150-950V |
|
Max.PV Current |
32A/16A |
|
Nominal AC Power |
10000W |
|
Nominal AC Voltage |
3W + N + PE, 380V, 400V, 415V |
|
Max.AC Current |
15.2A |
|
Nominal EPS Power |
10000W |
|
Max. Efficiency |
98.00% |
|
Battery Type |
Lithium |
|
Dimension (W*H*D) |
540*470*210 |
|
Weight |
26kg |
HYBRID INVERTER
HP3-12K D2
|
Max. PV Input Power |
24000Wp |
|
MPPT Voltage Range |
150-950V |
|
Max.PV Current |
32A/16A |
|
Nominal AC Power |
12000W |
|
Nominal AC Voltage |
3W + N + PE, 380V, 400V, 415V |
|
Max.AC Current |
18.2A |
|
Nominal EPS Power |
12000W |
|
Max. Efficiency |
98.00% |
|
Battery Type |
Lithium |
|
Dimension (W*H*D) |
540*470*210 |
|
Weight |
26kg |
HYBRID INVERTER
HP3-15K T2
|
Max. PV Input Power |
30000Wp |
|
MPPT Voltage Range |
150-950V |
|
Max.PV Current |
32A/32A/16A |
|
Nominal AC Power |
15000W |
|
Nominal AC Voltage |
3W + N + PE, 380V, 400V, 415V |
|
Max.AC Current |
22.8A |
|
Nominal EPS Power |
15000W |
|
Max. Efficiency |
98.10% |
|
Battery Type |
Lithium |
|
Dimension (W*H*D) |
595*485*235mm |
|
Weight |
38kg |
HYBRID INVERTER
HP3-20K T2
|
Max. PV Input Power |
40000Wp |
|
MPPT Voltage Range |
150-950V |
|
Max.PV Current |
32A/32A/16A |
|
Nominal AC Power |
20000W |
|
Nominal AC Voltage |
3W + N + PE, 380V, 400V, 415V |
|
Max.AC Current |
30.4A |
|
Nominal EPS Power |
20000W |
|
Max. Efficiency |
98.10% |
|
Battery Type |
Lithium |
|
Dimension (W*H*D) |
595*485*235mm |
|
Weight |
38kg |
HYBRID INVERTER
HP3-25K T2
|
Max. PV Input Power |
50000Wp |
|
MPPT Voltage Range |
150-950V |
|
Max.PV Current |
32A/32A/32A |
|
Nominal AC Power |
25000W |
|
Nominal AC Voltage |
3W + N + PE, 380V, 400V, 415V |
|
Max.AC Current |
37.9A |
|
Nominal EPS Power |
25000W |
|
Max. Efficiency |
98.20% |
|
Battery Type |
Lithium |
|
Dimension (W*H*D) |
595*485*235mm |
|
Weight |
38kg |
HYBRID INVERTER
HP3-30K T2
|
Max. PV Input Power |
60000Wp |
|
MPPT Voltage Range |
150-950V |
|
Max.PV Current |
32A/32A/32A |
|
Nominal AC Power |
30000W |
|
Nominal AC Voltage |
3W + N + PE, 380V, 400V, 415V |
|
Max.AC Current |
43.5A |
|
Nominal EPS Power |
30000W |
|
Max. Efficiency |
98.20% |
|
Battery Type |
Lithium |
|
Dimension (W*H*D) |
595*485*235mm |
|
Weight |
38kg |
