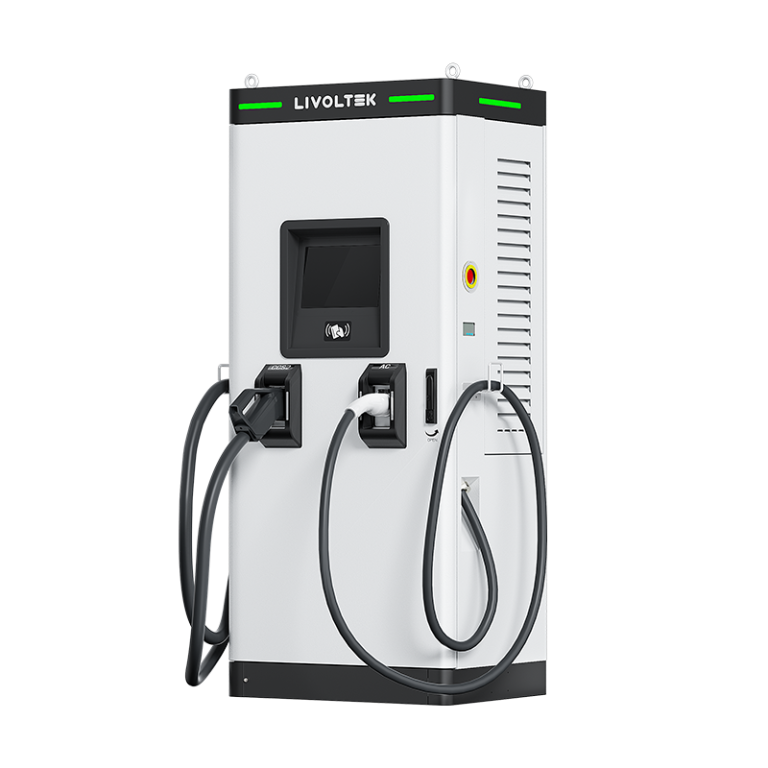

Motion Fast DC Charging Station

82kW (60kW DC + 22kw AC)

MF stand-alone DC charging station, maximum 82kW output for quick and flexible charging. LIVOLTEK stand-alone fast charging station integrated with two DC output and one optionl AC output, can be flexible configure with Type2, CCS2 plugs and AC connectors. It has intelligent cable management system for effortless pick-up. It complies with all IEC standards for off-board electric vehicle charging systems, including IEC 61851-21-2 EMC requirement and IEC 61851-24
digital communication control.

Future-proof design via open standards, OCPP 1.6J support remote update to OCPP2.0.1 protocol.

CE, UKCA and RoHS certification, suitable for all European countries need

Interaction via 10‘‘color touch display

Multi User Authorization with RFID, APP, customized NFC payment

Load management & real-time demand response ready with Livoltek EV Charging Control Hub

MF DC CHARGING STATION

82kW (60KW DC + 22kW AC)


Rated Power	82kW (60KW DC + 22kW AC)
AC Connection	3P+N+PE
AC Input Voltage	380 Vac ± 15%
AC Input MaxCurrent.	128A(Max)
Rated Frequency	50/60Hz
External Communication	RS485 / RS232 / CAN
Output Current	CCS2: 200A(Max), Type2(32A Max
Peak Efficiency	≥95%（20~100% Load）
Communication	IEC 61851-24, DIN 70121, ISO/IEC 15118

Related Products

Accessories

EV Charging Control Hub Energy Management System for EV Charging Field

DC-EV Charger

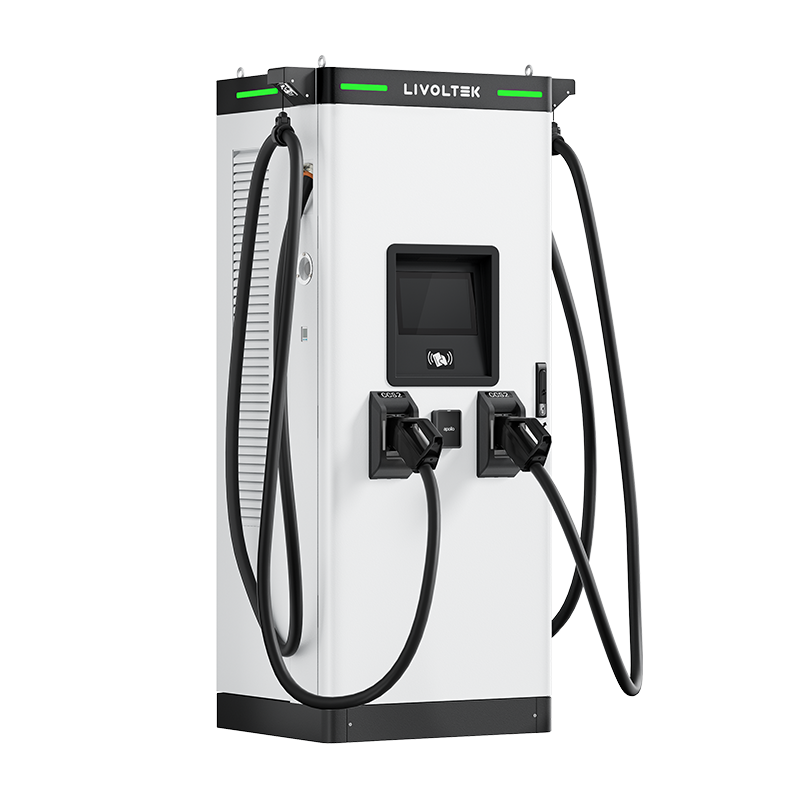

MF DC Charging Station with Power Module 160/240kW

DC-EV Charger

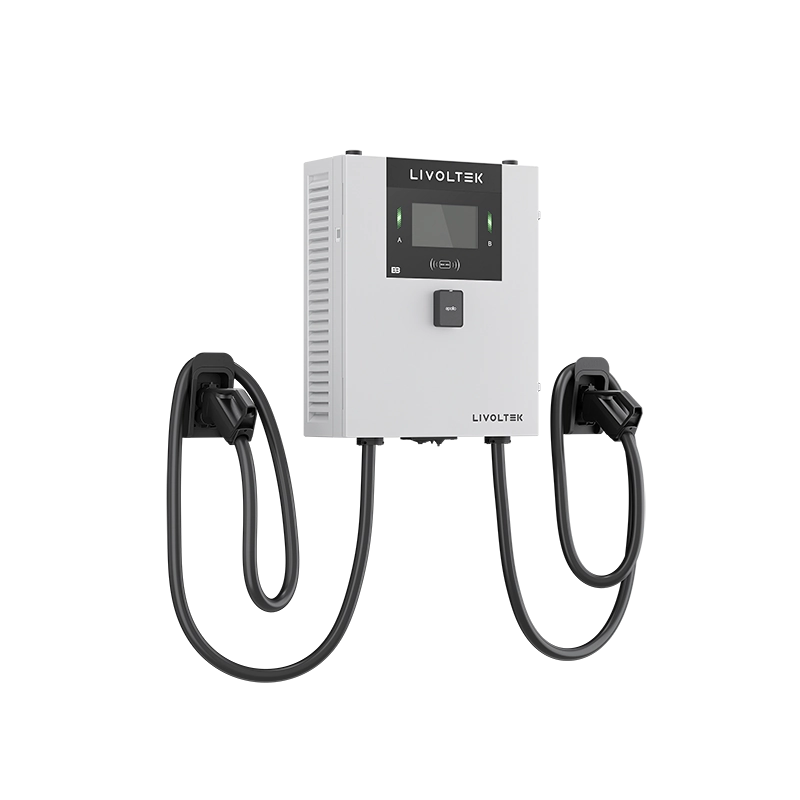

Motion Compact DC WallBox EV Charger 15~60kW

AC-EV Charger

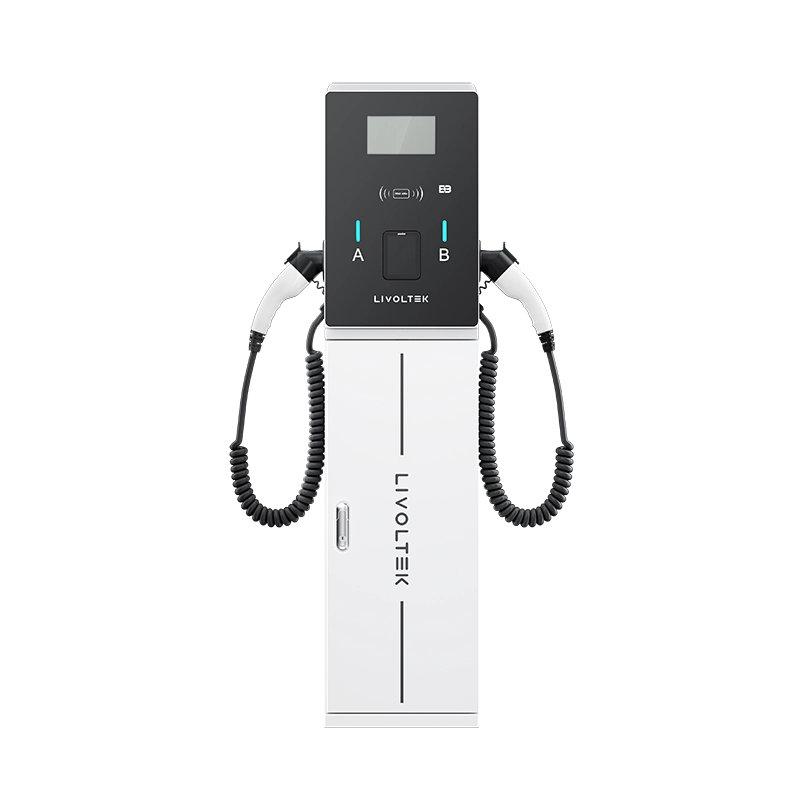

BUSH Series Business AC EV Charger 2*7.3kW/2*22kW
