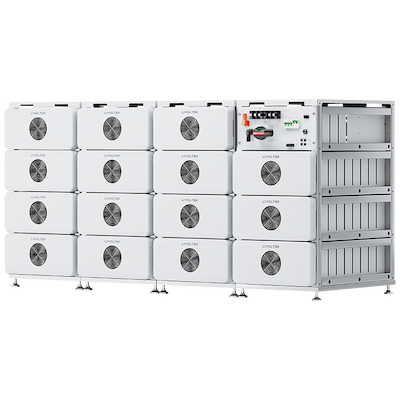

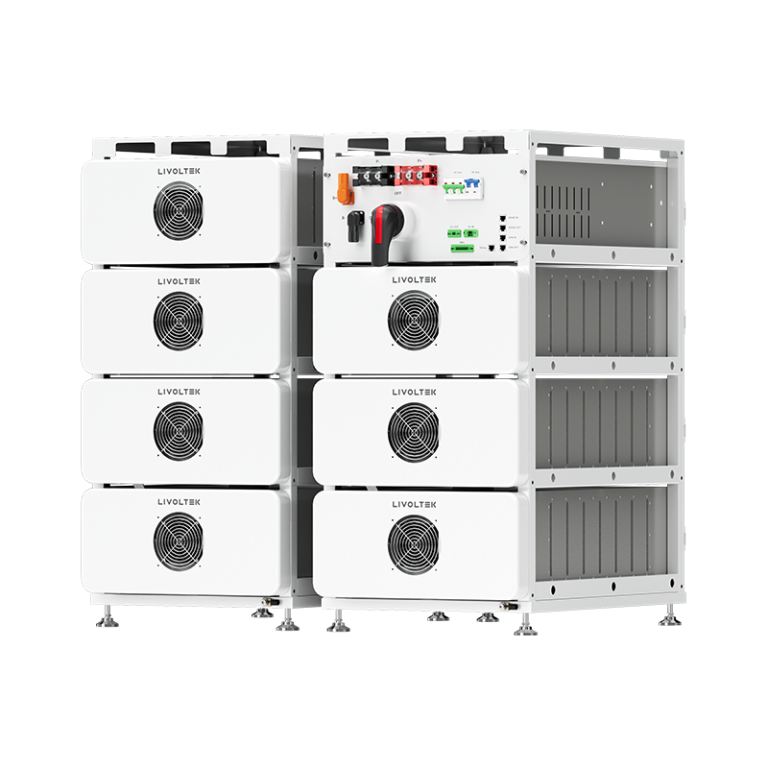

C&I Energy Storage System
HIGH-VOTAGE VATTERY
BHF-C80/100/120/140/160/180/200/220/240
BHF-C80/100/120/140/160/180/200/220/240
The BHF-C Series is suitable for small and medium-scale commercial and industrial scenarios.
Equipped with a high safety 3l4Ah LFp battery support 5 clusters in parallel with max. Capacity of 1205kWh, it features a rack-mounted design for easy installation and intelligent charge/discharge strategies, enabling efficient, sustainable energy management.
Flexible Expansion
● Battery delivers 241kWh per cluster, up to 5 clusters in parallel
● Support 80kWh~1.2MWh flexible capacity expansion
High Performance
● 314Ah high-performance LFP cells
● 6000+cycles life
Smart Control
● Built-in intelligent BMS
● Support remote monitoring and upgrades
HIGH-VOLTAGE BATTERY
BHF-C80
|
Nominal Voltage |
256 V |
|
Operating Voltage Range |
224 ~ 288 V |
|
Rate Capacity |
314 Ah |
|
Number of modules |
4 |
|
Total Energy |
80.4 kWh |
|
Usable Energy |
72.3 kWh |
|
Max. Charge / Discharge Power |
40.2 kW |
|
Max. Charge/Discharge Current |
179.4 A |
|
Weight |
640 kg |
HIGH-VOLTAGE BATTERY
BHF-C100
|
Nominal Voltage |
320 V |
|
Operating Voltage Range |
280 ~ 360 V |
|
Rate Capacity |
314 Ah |
|
Number of modules |
5 |
|
Total Energy |
100.5 kWh |
|
Usable Energy |
90.4 kWh |
|
Max. Charge / Discharge Power |
50.2 kW |
|
Max. Charge/Discharge Current |
179.4 A |
|
Weight |
807 kg |
HIGH-VOLTAGE BATTERY
BHF-C120
|
Nominal Voltage |
384 V |
|
Operating Voltage Range |
336~432 V |
|
Rate Capacity |
314 Ah |
|
Number of modules |
6 |
|
Total Energy |
120.6 kWh |
|
Usable Energy |
108.5 kWh |
|
Max. Charge / Discharge Power |
60.3 kW |
|
Max. Charge/Discharge Current |
179.4 A |
|
Weight |
954 kg |
HIGH-VOLTAGE BATTERY
BHF-C140
|
Nominal Voltage |
448 V |
|
Operating Voltage Range |
392 ~ 504 V |
|
Rate Capacity |
314 Ah |
|
Number of modules |
7 |
|
Total Energy |
140.7 kWh |
|
Usable Energy |
126.6 kWh |
|
Max. Charge / Discharge Power |
70.3 kW |
|
Max. Charge/Discharge Current |
179.4 A |
|
Weight |
1100 kg |
HIGH-VOLTAGE BATTERY
BHF-C160
|
Nominal Voltage |
512 V |
|
Operating Voltage Range |
448 ~ 576 V |
|
Rate Capacity |
314 Ah |
|
Number of modules |
8 |
|
Total Energy |
160.8 kWh |
|
Usable Energy |
144.7 kWh |
|
Max. Charge / Discharge Power |
80.4 kW |
|
Max. Charge/Discharge Current |
179.4 A |
|
Weight |
1248 kg |
HIGH-VOLTAGE BATTERY
BHF-C180
|
Nominal Voltage |
576 V |
|
Operating Voltage Range |
504 ~ 648 V |
|
Rate Capacity |
314 Ah |
|
Number of modules |
9 |
|
Total Energy |
180.9 kWh |
|
Usable Energy |
162.8 kWh |
|
Max. Charge / Discharge Power |
90.4 kW |
|
Max. Charge/Discharge Current |
179.4 A |
|
Weight |
1414 kg |
HIGH-VOLTAGE BATTERY
BHF-C200
|
Nominal Voltage |
640 V |
|
Operating Voltage Range |
560 ~ 720 V |
|
Rate Capacity |
314 Ah |
|
Number of modules |
10 |
|
Total Energy |
201.0 kWh |
|
Usable Energy |
180.9 kWh |
|
Max. Charge / Discharge Power |
100.5 kW |
|
Max. Charge/Discharge Current |
179.4 A |
|
Weight |
1561 kg |
HIGH-VOLTAGE BATTERY
BHF-C220
|
Nominal Voltage |
704 V |
|
Operating Voltage Range |
616 ~ 792 V |
|
Rate Capacity |
314 Ah |
|
Number of modules |
11 |
|
Total Energy |
221.1 kWh |
|
Usable Energy |
199.0 kWh |
|
Max. Charge / Discharge Power |
110.5 kW |
|
Max. Charge/Discharge Current |
179.4 A |
|
Weight |
1708 kg |
HIGH-VOLTAGE BATTERY
BHF-C240
|
Nominal Voltage |
768 V |
|
Operating Voltage Range |
672 ~ 864 V |
|
Rate Capacity |
314 Ah |
|
Number of modules |
12 |
|
Total Energy |
241.2 kWh |
|
Usable Energy |
217.0 kWh |
|
Max. Charge / Discharge Power |
120.6 kW |
|
Max. Charge/Discharge Current |
179.4 A |
|
Weight |
1855 kg |
