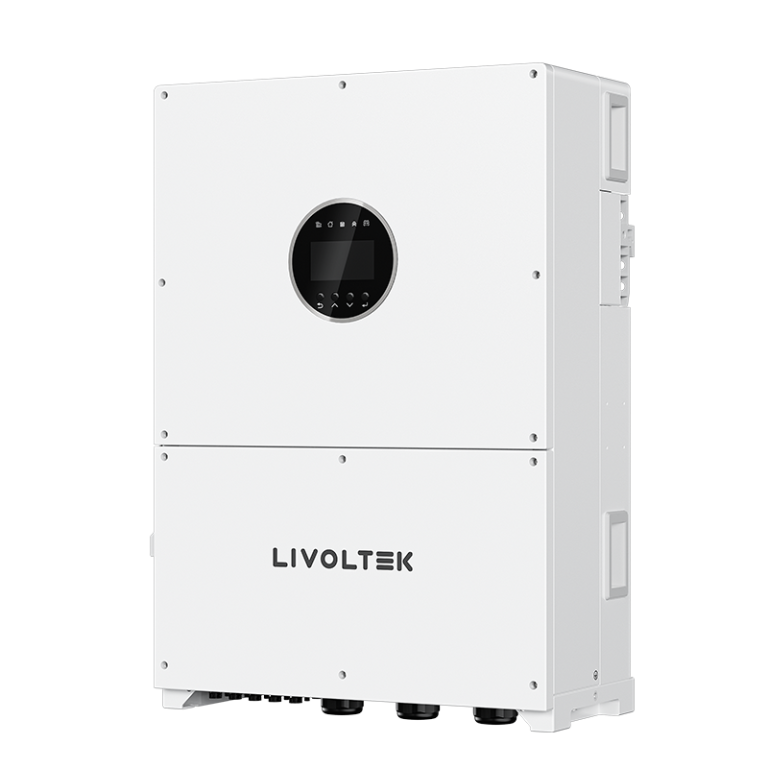

LuminHybrid Series

Three-Phase: HP3-37.5/40/49.9/50/60K S1

As the core of the energy storage solution, LIVOLTEK three phase hybrid inverter offers flexible and social-able solutions for both residential and commercial applications. With the ability of scalable battery storage, the high-voltage inverter facilitate powerful energy backup and also present high self-consumption with optimized built-in EMS to reduce energy cost.

High Efficiency & Reliability

● 120% overload capacity (10s) in off-grid mode
● Supports max. 45A PV input current, compatible with high-power solar panels
● Seamless on grid/off grid switching time <10ms
● Supports up to 200% PV oversize, 100% three-phase unbalanced output

Flexibility & Reliability

● Supports up to 10 units in parallel for grid-tied and off-grid operation
● Diesel generator compatibility; flexible multi-energy integration
● Dual independent battery inputs for flexible configuration
● Flexible DC/AC PV coupling for retrofits and expansion

Safe & Intelligent

● Support AFCI, Type II AC/DC surge protection
● Supports intelligent terminal temperature detection
● Intelligent load management and remote OTA

LuminHybrid Series

HP3-37K5S1


Max. PV Input Power	75 kWp
Max. PV Input Voltage	1100 V
MPPT Voltage Range	150-1000 V
No. of MPPTs/Strings per MPPT	5/(2+2+2+2+2)
Max.PV Current	45/45A/45A/45A/45A
Nominal AC Power	37.5 kW
Nominal AC Output Voltage	3W+N+PE, 380V, 400V, 415V
Max.Output Current	57 A
Nominal EPS Power	41.2 kW
Max. Efficiency	98.40%
Battery Type	Lithium
Dimension (WHD)	620895300 mm
Weight	80 kg

LuminHybrid Series

HP3-40KS1


Max. PV Input Power	80 kWp
Max. PV Input Voltage	1100 V
MPPT Voltage Range	150-1000 V
No. of MPPTs/Strings per MPPT	5/(2+2+2+2+2)
Max.PV Current	45/45A/45A/45A/45A
Nominal AC Power	40 kW
Nominal AC Output Voltage	3W+N+PE, 380V, 400V, 415V
Max.Output Current	66.7 A
Nominal EPS Power	44 kW
Max. Efficiency	98.40%
Battery Type	Lithium
Dimension (WHD)	620895300 mm
Weight	80 kg

LuminHybrid Series

HP3-49K9S1


Max. PV Input Power	99.8 kWp
Max. PV Input Voltage	1100 V
MPPT Voltage Range	150-1000 V
No. of MPPTs/Strings per MPPT	5/(2+2+2+2+2)
Max.PV Current	45/45A/45A/45A/45A
Nominal AC Power	49.9 kW
Nominal AC Output Voltage	3W+N+PE, 380V, 400V, 415V
Max.AC Output Current	75.6 A
Nominal EPS Power	55 kW
Max. Efficiency	98.40%
Battery Type	Lithium
Dimension (WHD)	620895300 mm
Weight	80 kg

LuminHybrid Series

HP3-50KS1


Max. PV Input Power	100 kWp
Max. PV Input Voltage	1100 V
MPPT Voltage Range	150-1000 V
No. of MPPTs/Strings per MPPT	5/(2+2+2+2+2)
Max.PV Current	45/45A/45A/45A/45A
Nominal AC Power	50 kW
Nominal AC Output Voltage	3W+N+PE, 380V, 400V, 415V
Max.AC Output Current	83.4 A
Nominal EPS Power	55 kW
Max. Efficiency	98.40%
Battery Type	Lithium
Dimension (WHD)	620895300 mm
Weight	80 kg

LuminHybrid Series

HP3-60KS1


Max. PV Input Power	120 kWp
Max. PV Input Voltage	1100 V
MPPT Voltage Range	150-1000 V
No. of MPPTs/Strings per MPPT	5/(2+2+2+2+2)
Max.PV Current	45/45A/45A/45A/45A
Nominal AC Power	60 kW
Nominal AC Output Voltage	3W+N+PE, 380V, 400V, 415V
Max.AC Output Current	100 A
Nominal EPS Power	66 kW
Max. Efficiency	98.40%
Battery Type	Lithium
Dimension (WHD)	620895300 mm
Weight	80 kg
