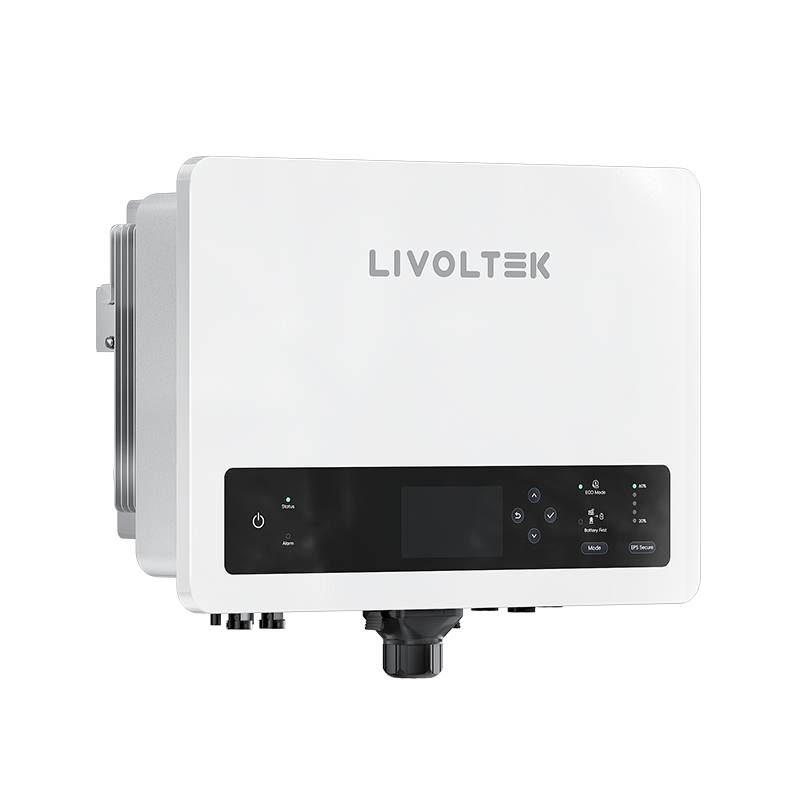

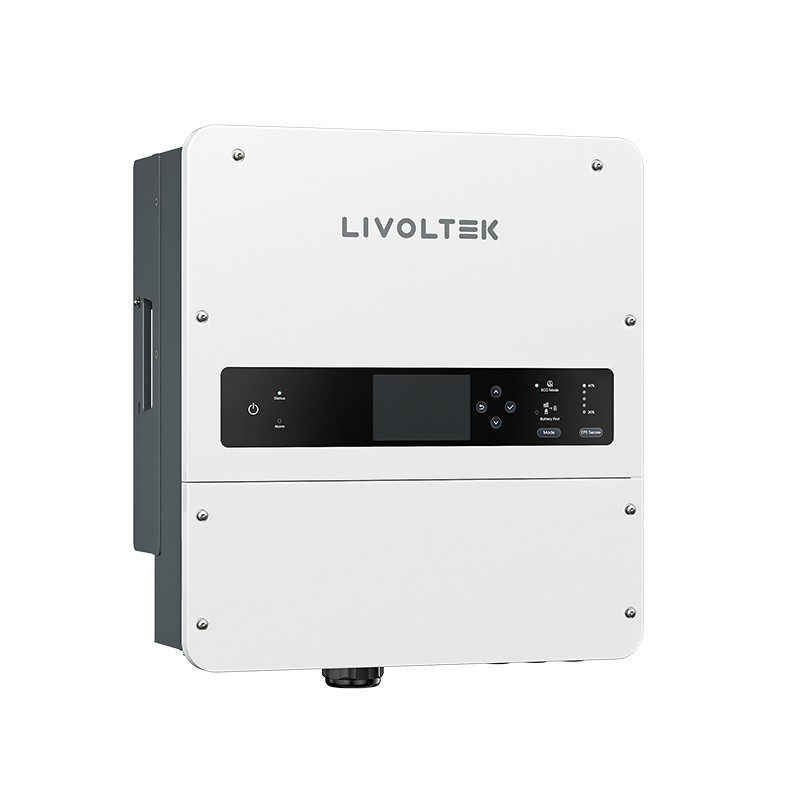

Off-Grid Inverter

GF1-3K5/4K5/6K2S3

The GF1 series is a single-phase off-grid solar inverter designed for backup power, energy storage, and uninterrupted electricity. It features a high-efficiency MPPT charge controller, supports parallel operation for three-phase output, and offers flexible battery compatibility. The compact design includes a removable dust filter and enables real-time monitoring via dual communication interfaces and a mobile app.

Datasheet
Maximum input current of 32A per PV string.
WiFi + local Bluetooth communication with real-time APP monitoring.
Supports up to 1.5 times PV overmatching and 1.5 times overload capability on the AC (off-grid) side.
Supports parallel connection of up to 6 units, with three or more units capable of forming a three-phase off-grid output.
HYBRID INVERTER
GF1-3K5S3D
Max. PV Input Power
5200 W
Max. Open Circuit Voltage
500 V
MPPT Voltage Range
60V ~ 450V
No. of MPPTs/Strings per MPPT
1 / 1
Max. PV Input Current
18 A
Max. Short Circuit Current
25 A
Nominal Output Active Power
3500 W
Max. Efficiency
93.0%
HYBRID INVERTER
GF1-6K2S3D
Max. PV Input Power
9300 W
Max. Open Circuit Voltage
500 V
MPPT Voltage Range
60V ~ 450V
No. of MPPTs/Strings per MPPT
1 / 2
Max. PV Input Current
32 A
Max. Short Circuit Current
40 A
Nominal Output Active Power
6200 W
Max. Efficiency
93.0%
